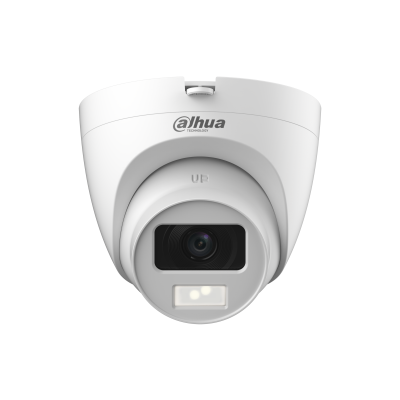

Dahua Dual Illuminators Eyeball Camera 2MP

CameraImage Sensor2 MP CMOSMax. Resolution1920 (H) × 1080 (V)Scanning SystemProgressiveElectronic Shutter SpeedPAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 sMin. Illumination0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)S/N Ratio>65 dBIllumination DistanceIR: 20 m (65.62 ft)Warm light: 20 m (65.62 ft)Illuminator On/Off ControlAutoIlluminator Number2 (Warm light); 2 (IR light)Angle AdjustmentPan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°LensLens TypeFixed-focalAuto FocusNoLens MountM12Focal Length2.8 mm;3.6 mmMax. ApertureF2.0Field of View2.8 mm: H: 102°; V: 60°; D: 129° 3.6 mm: H: 83°; V: 48°; D: 105°Iris ControlFixedClose Focus Distance2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm41.1 m(135.83 ft)16.5 m(42.13 ft)8.3 m(27.23 ft)4.1 m(13.45 ft)3.6 mm50.9 m(166.99 ft)20.3 m(66.60 ft)10.2 m(33.46 ft)5.1 m(16.73 ft)VideoVideo Frame RateCVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960HResolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)Day/NightAuto(ICR)/Color/B/WBLCBLC; HLC; DWDRWDRDWDRWhite BalanceAuto;Area white balanceGain ControlAutoNoise Reduction3D NRIllumination ModeSmart IR&WL; WL Mode; IR ModeMirrorYesPrivacy MaskingOff/On (8 areas, rectangle)CertificationCertificationsCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart BPortVideo OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC portAudio Input1 channelPowerPower Supply12 VDC ± 30%Power ConsumptionMax 2.6W (12 VDC, IR on)EnvironmentOperating Temperature–40 °C to 60 °C (–40 °F to 140 °F)Operating Humidity<95% (RH), non-condensingStorage Temperature–40 °C to 60 °C (–40 °F to 140 °F)Storage Humidity<95% (RH), non-condensingProtectionIP67StructureCasing MaterialPlasticProduct DimensionsΦ97.1 mm × 93.8 mm (Φ3.82″ × 3.69″)Net Weight0.18 kg (0.40 lb)Gross Weight0.29 kg (0.64 lb)InstallationWall mount; ceiling mount; vertical pole mount
