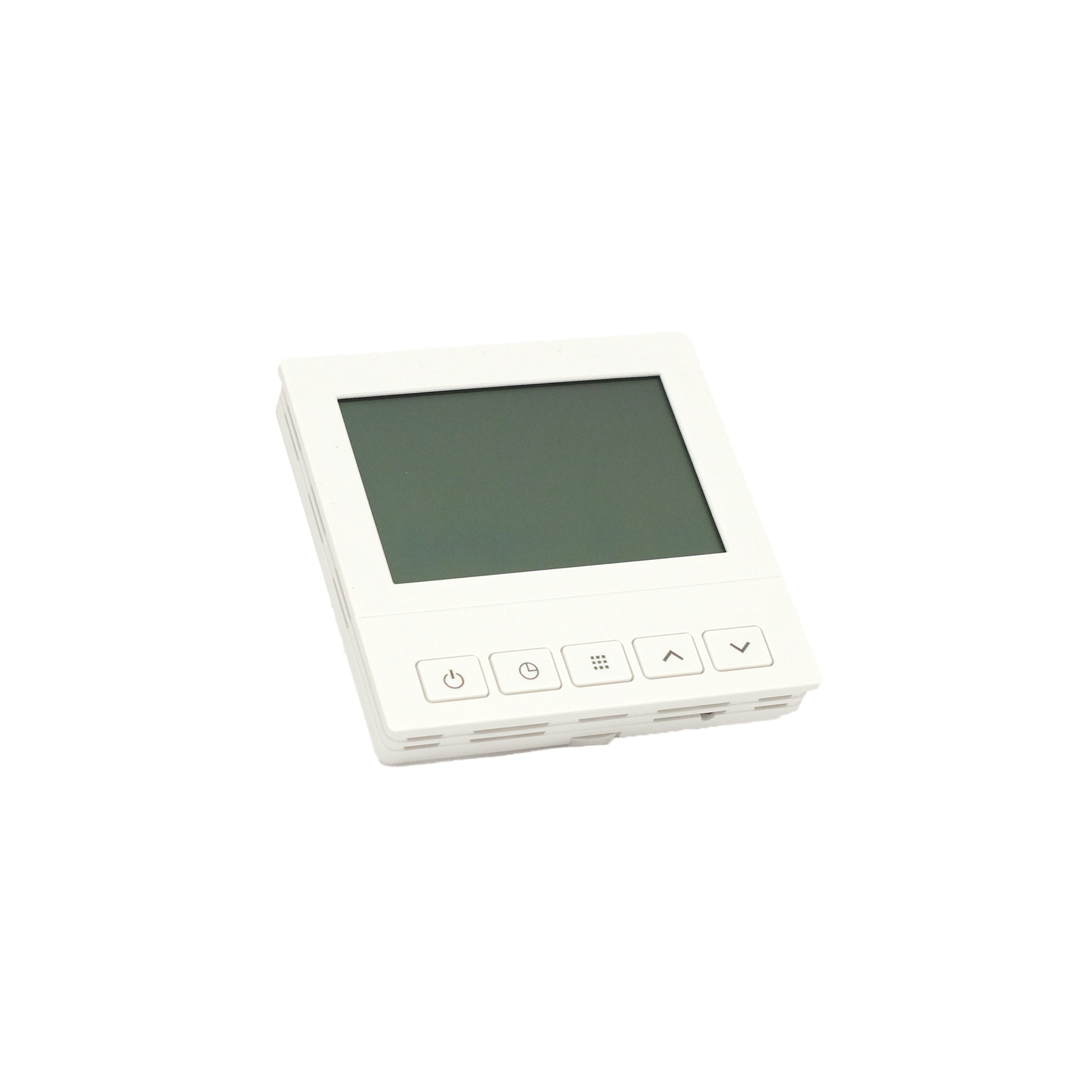

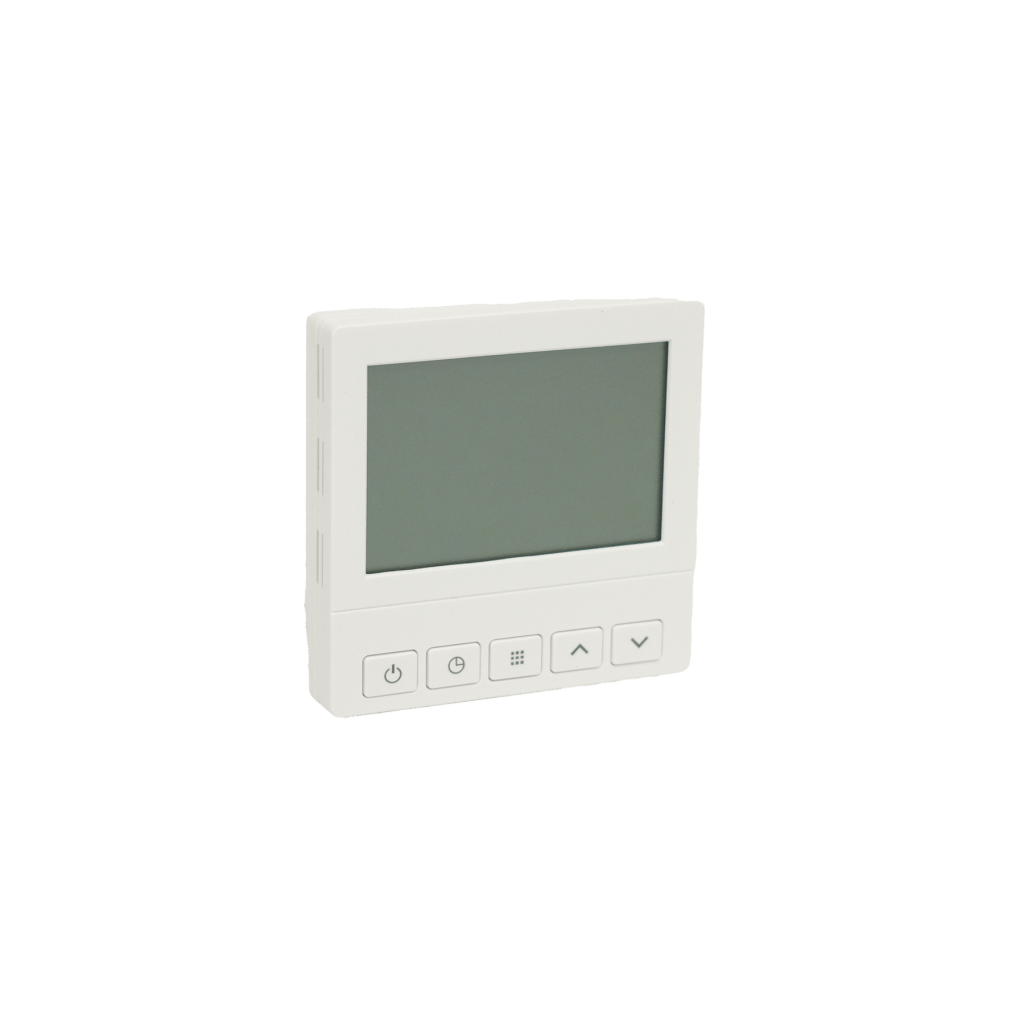

Tritherm DuraTherm Digital Thermostat

Tritherm Duratherm Digital Programmable Thermostat Sophisticated digital programmable thermostat designed specifically for water floor heating systems. It offers precise temperature control with advanced features to prevent heat inertia, ensuring optimal comfort and energy efficiency. Key Product Features Feature Detail Benefit Display Large LCD with Backlight Easy to read in low light conditions2.   Control Modes Room / Floor / Combined Flexible control options (Room priority, Floor limitation, etc.)3.   Programming 7-Day / 5 1 1 / 5 2 Customizable schedules (up to 4 or 6 periods per day)4444.   Safety Anti-freezing & Heat Inertia Prevents freezing and overheating for system longevity5555.   Memory Permanent Retention Saves user settings even during power loss6.   Accuracy $\pm0.5^{\circ}\text{C}$ Precise temperature maintenance7. Intelligent & Flexible Control This thermostat is designed to adapt to your lifestyle and heating needs. Prevent Heat Inertia: Automatically adjusts output to prevent the room temperature from overshoot (getting too hot). Intelligent Recovery: Pre-heats the room based on the previous 5 days’ heating data to reach the set temperature exactly when scheduled. Multiple Sensors: Can be set to control based on Room Sensor only, Floor Sensor only, or Room Sensor with Floor Limitation (ideal for protecting wood/laminate floors) . Programming Options Choose the schedule that fits your routine. You can select between 4 or 6 periods per day for maximum flexibility. 7 Days (Separate): Different schedule for every day of the week. 5 1 1: One schedule for Weekdays, one for Saturday, one for Sunday. 5 2: One schedule for Weekdays, one for the Weekend. Non-Programmable: Simple manual control. Technical Specifications Detail Specification Power Source 100-240VAC 50/60Hz 16   Max Load Current 3A (2A Inductive) 17   Room Temp Range $5^{\circ}\text{C}$ to $50^{\circ}\text{C}$ 18   Floor Temp Range $5^{\circ}\text{C}$ to $70^{\circ}\text{C}$ 19   Accuracy $\pm0.5^{\circ}\text{C}$ 20   Dimensions $86\text{mm} \times 86\text{mm} \times 13\text{mm}$ 21   Color White 22 Installation & Wiring The thermostat is designed for professional installation on a standard wall box. Wiring: Connects to Power (L/N), Load (L1), and External Floor Sensor (S1/S2) . Mounting: Simple 2-screw installation into the back box. Like this:Like Loading…
